Brainstorming
Prototype

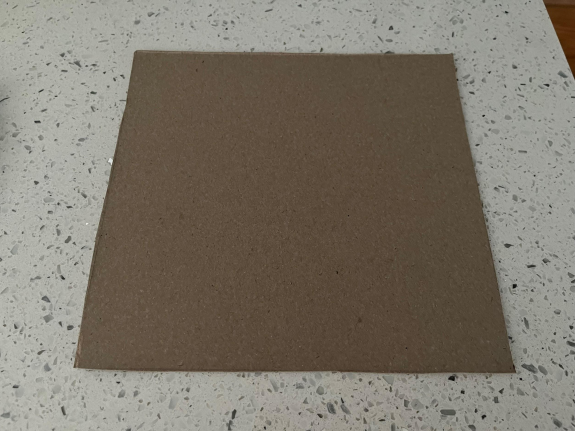

8"x8" Carboard Base

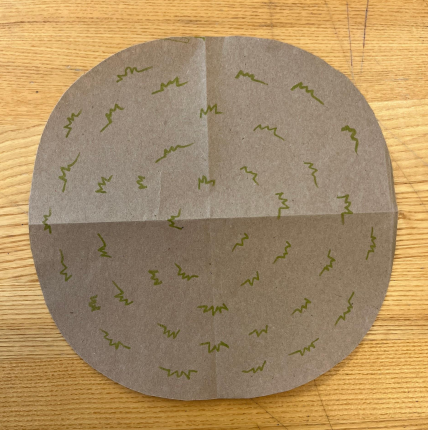

Paper floor depicting grass.

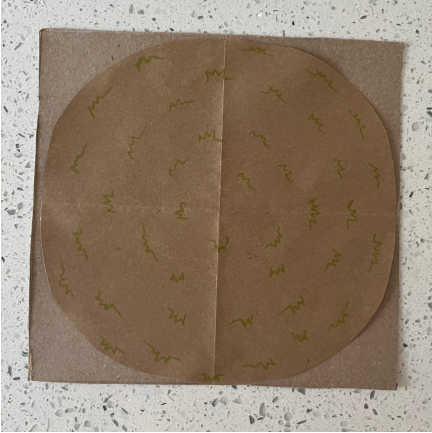

Foundation of Prototype

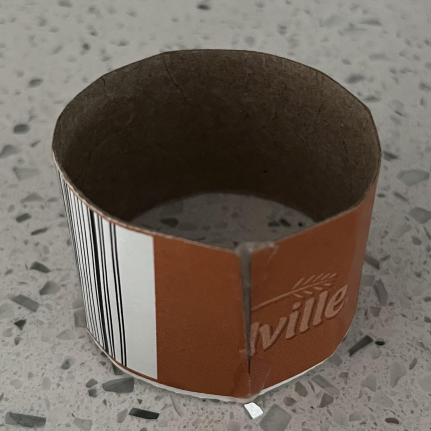

Cardboard ring used to support the entrance.

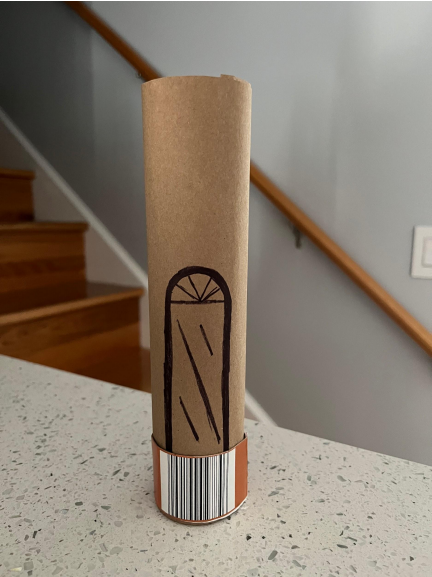

Paper tube depicting sliding glass door for an entrance.

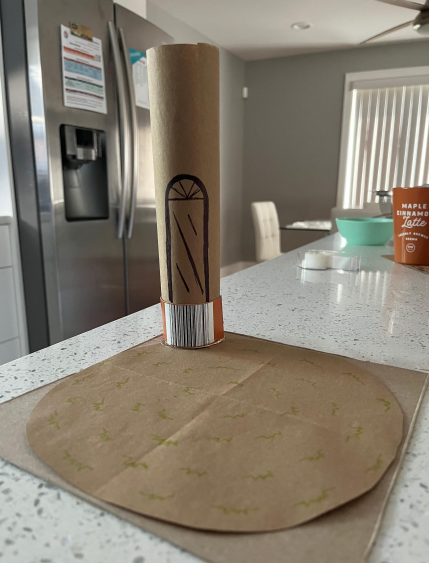

Base and entrance put together.

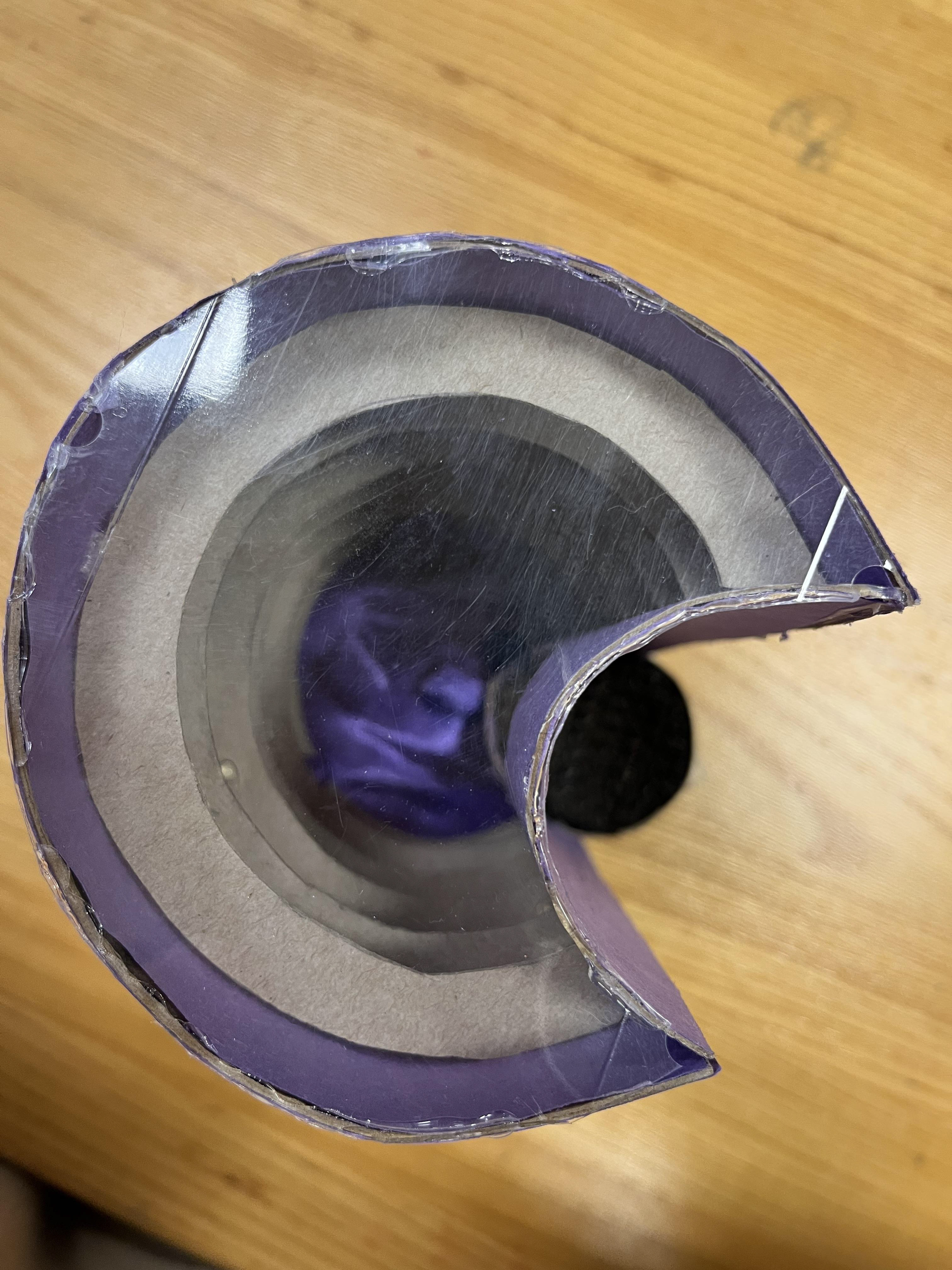

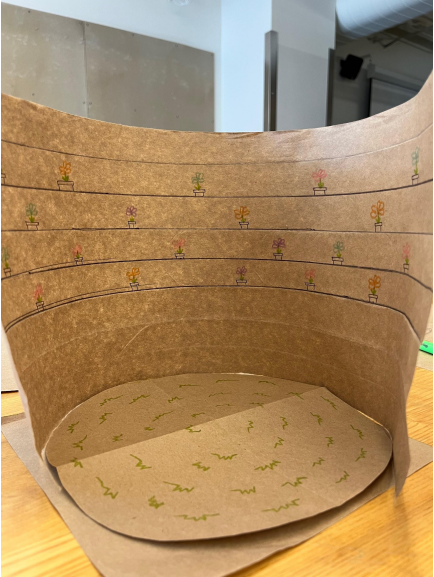

Interior perspective

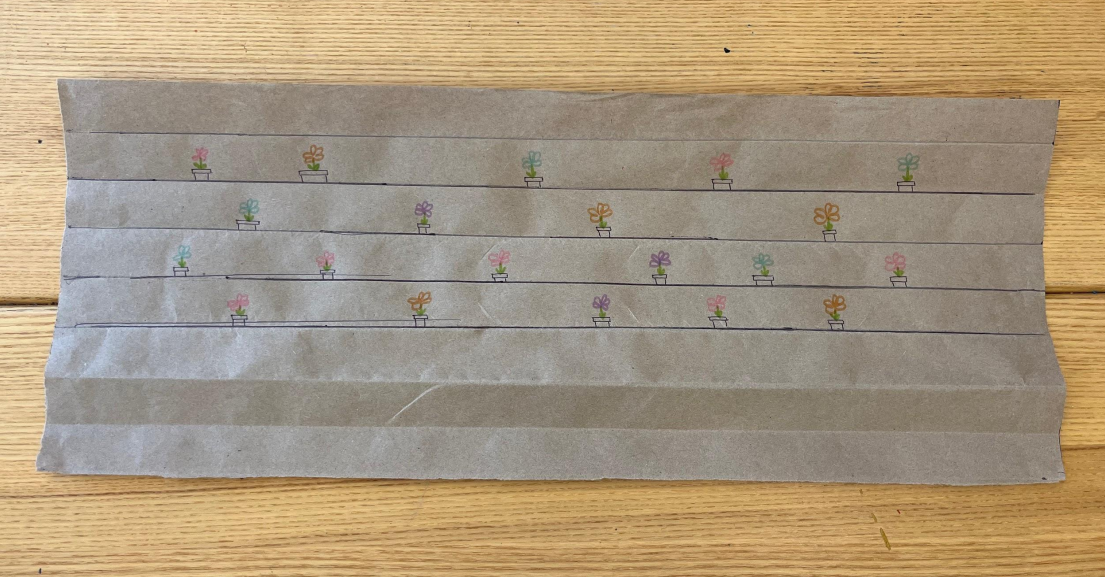

Paper wall depicting shelves and flowerpots.

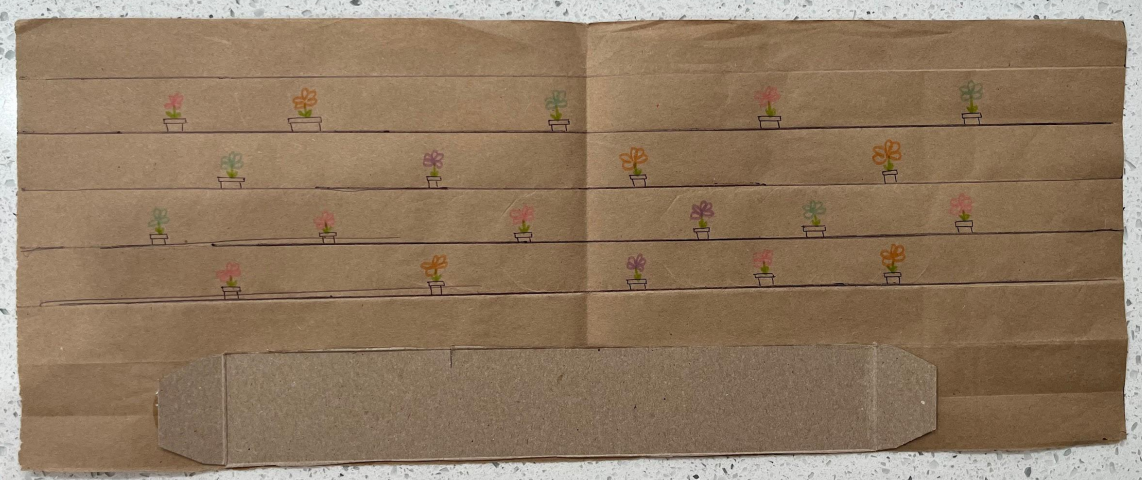

Paper wall lined with a strip of cardboard for support.

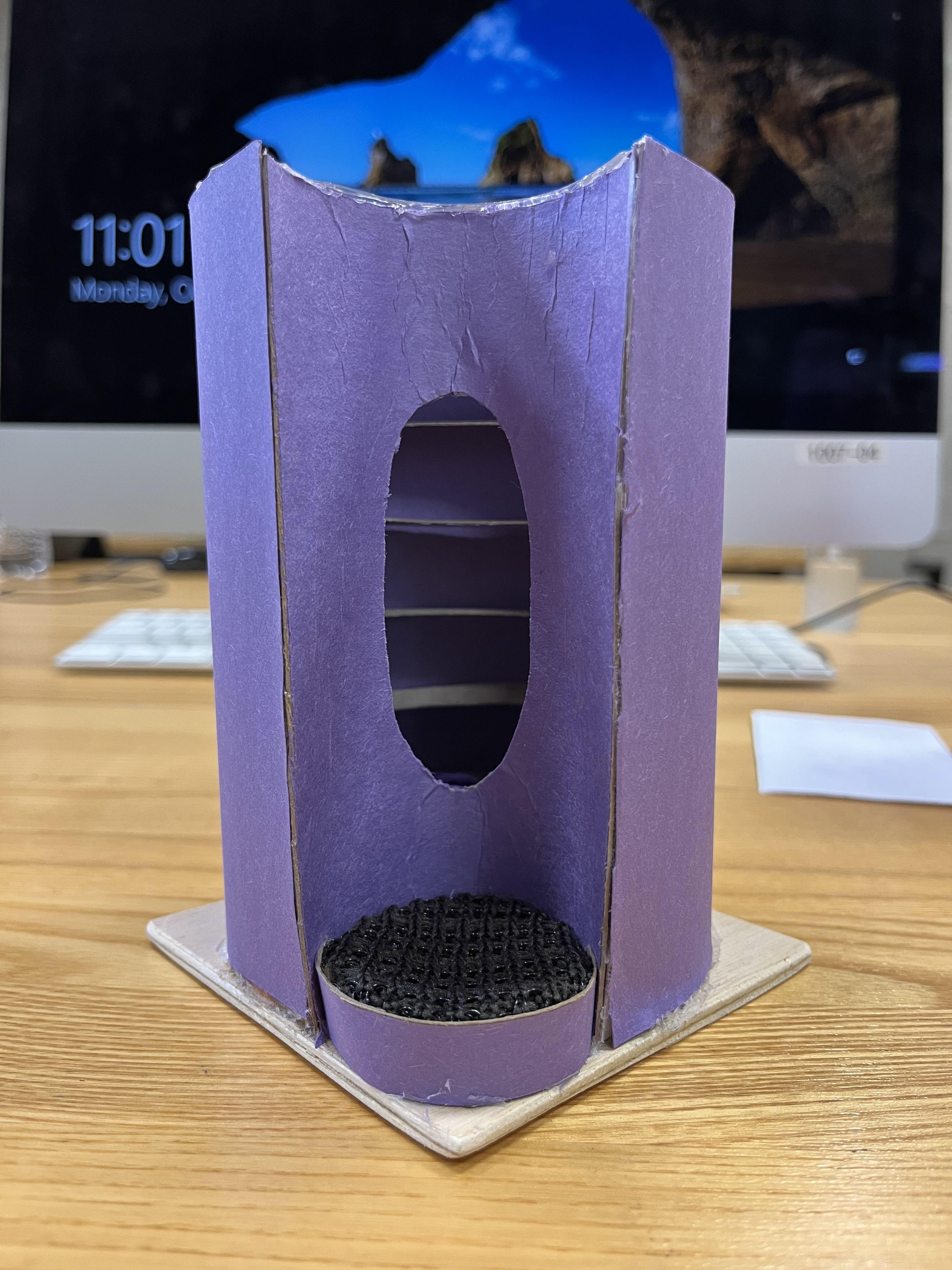

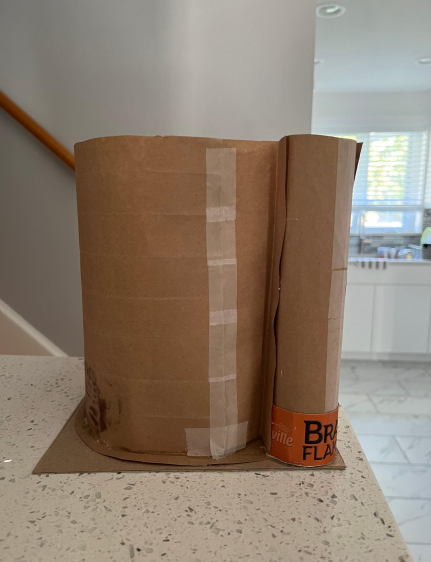

Prototype from the outside once put together.

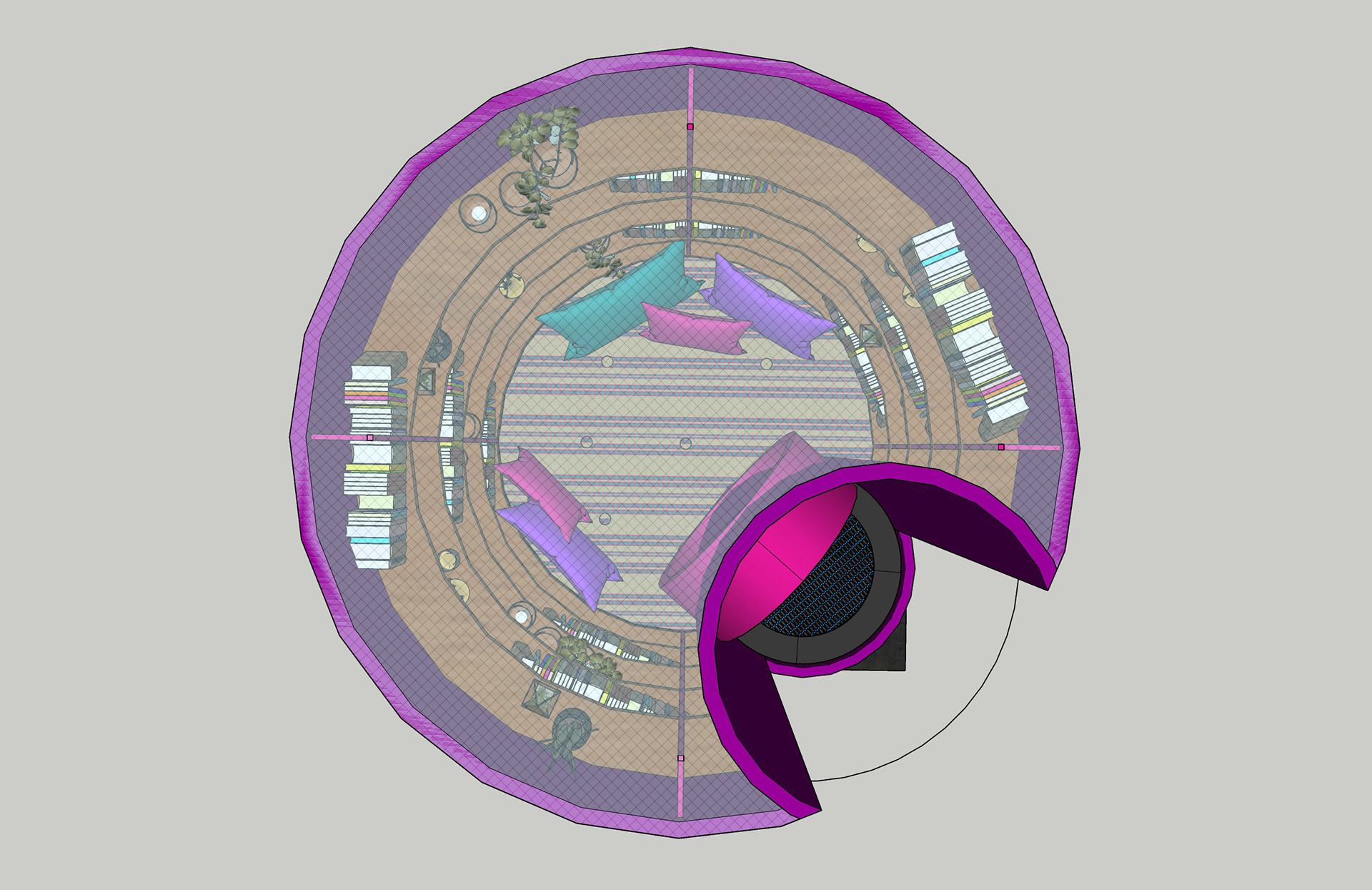

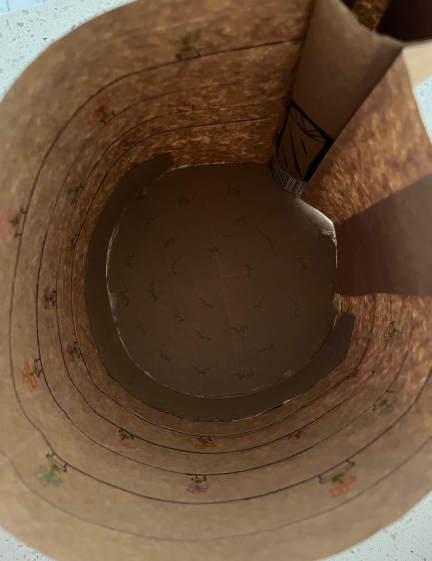

Top View

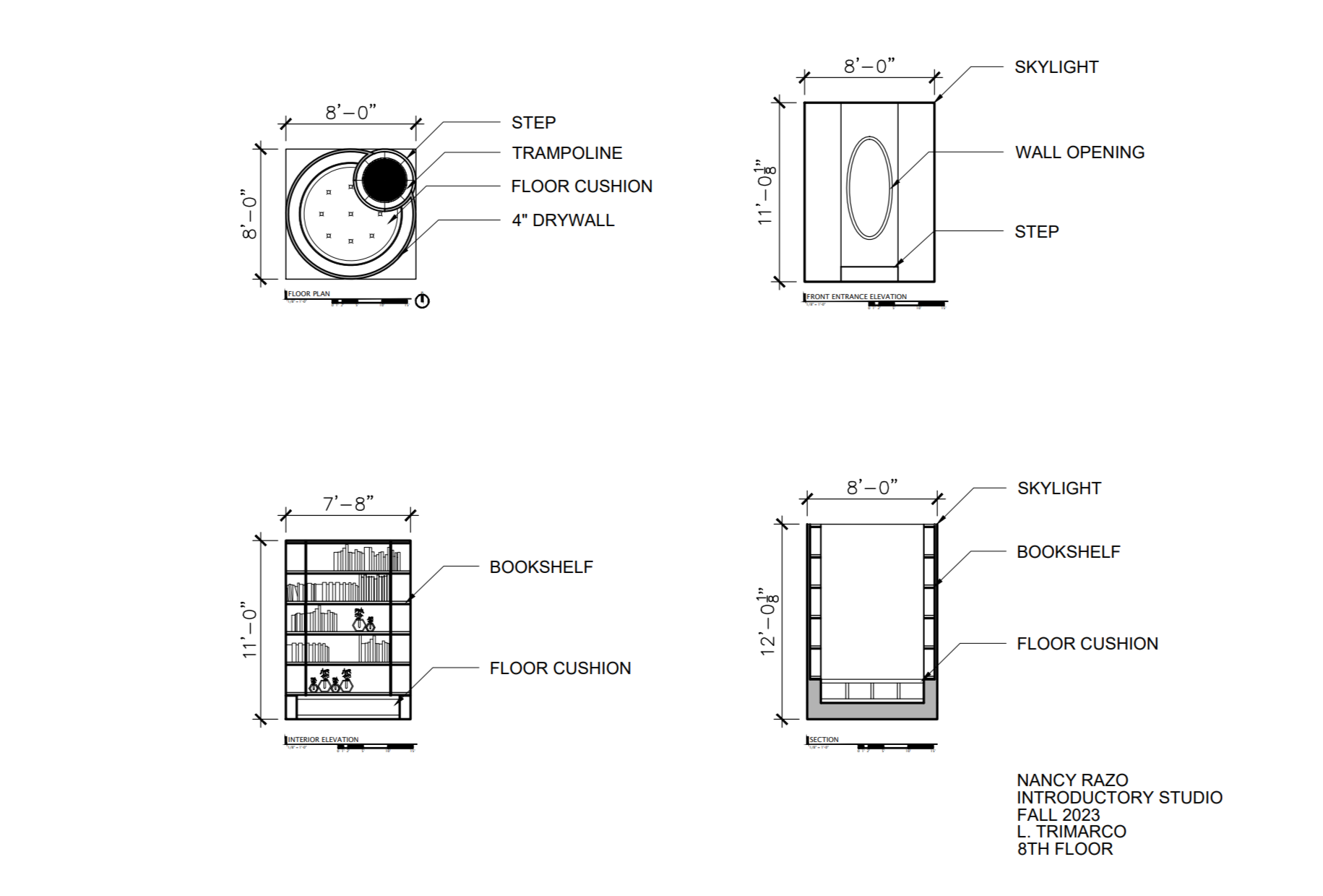

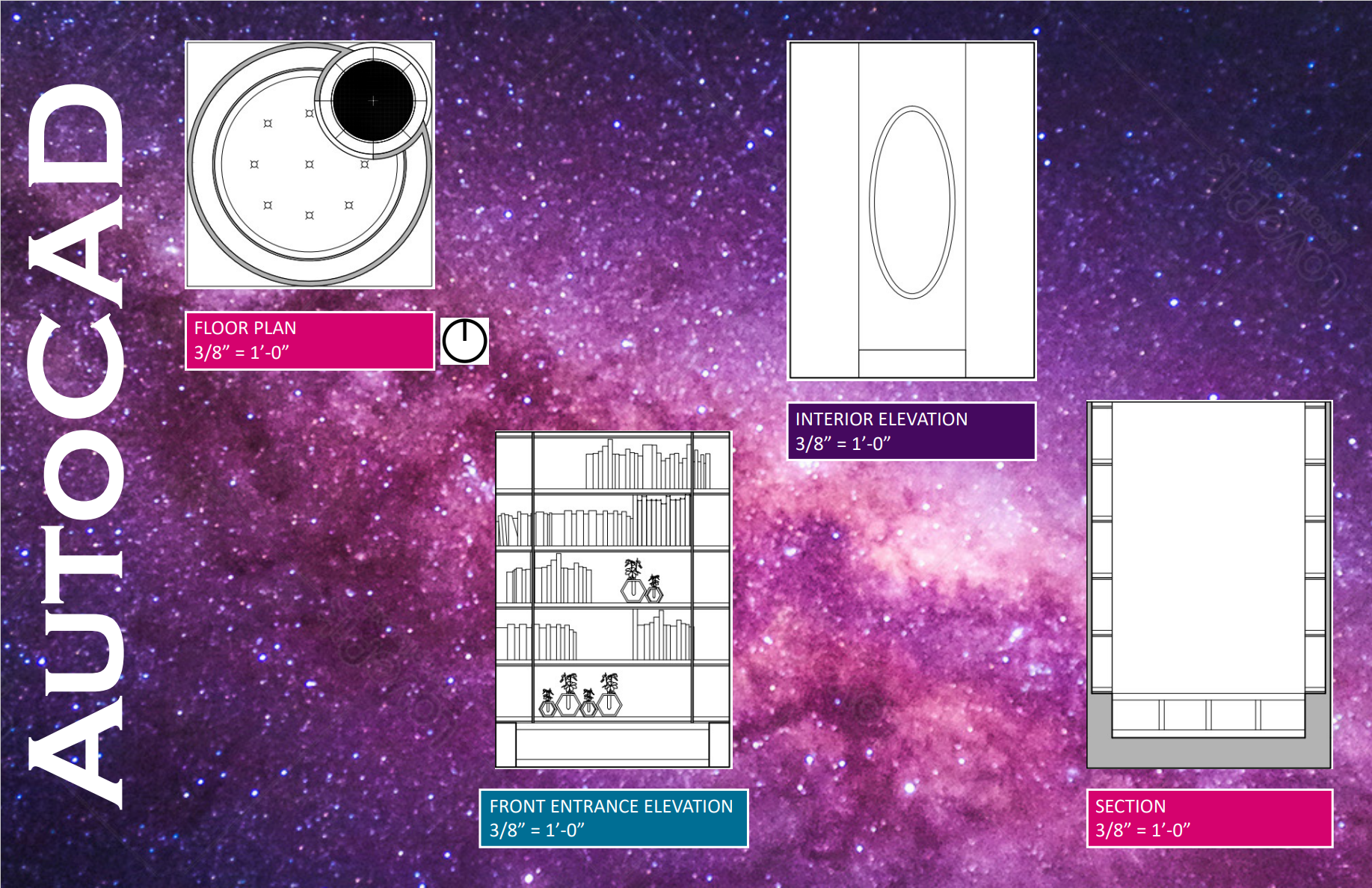

AutoCAD drawings at 3/8" = 1'-0" scale
SketchUp Prototype Model

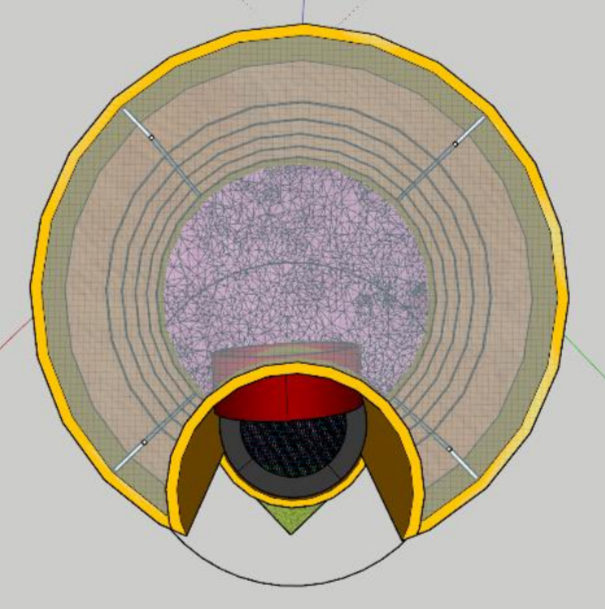

Top View (with skylight)

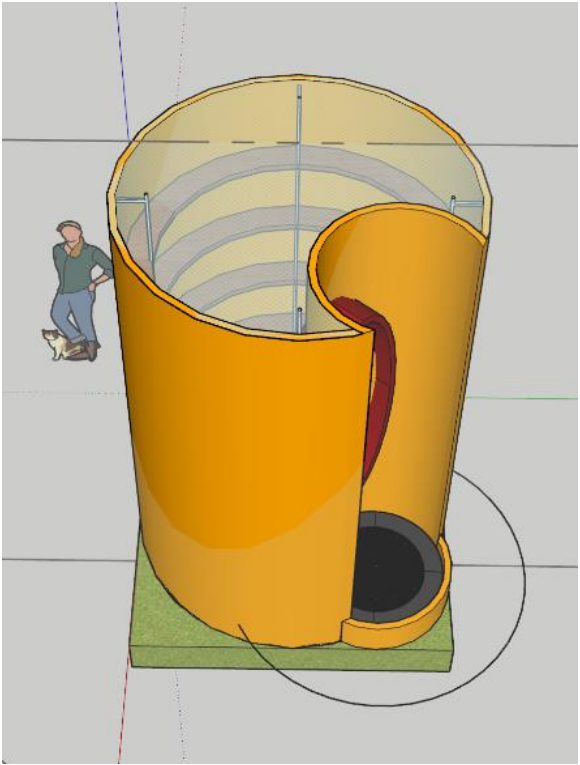

Angled Perspective
Sliced Perspective

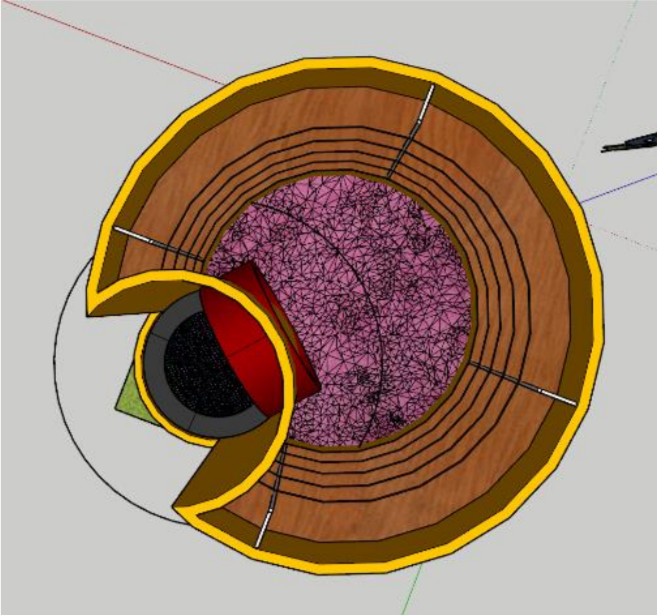

Top View (without skylight)

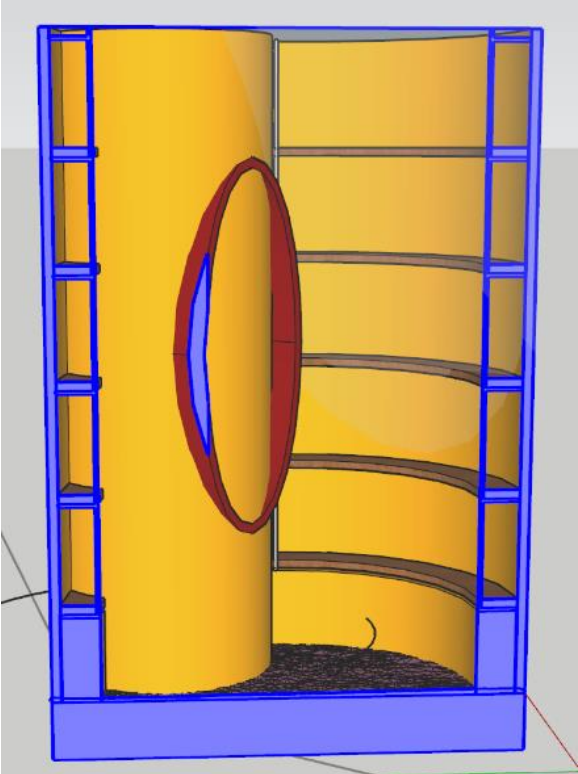

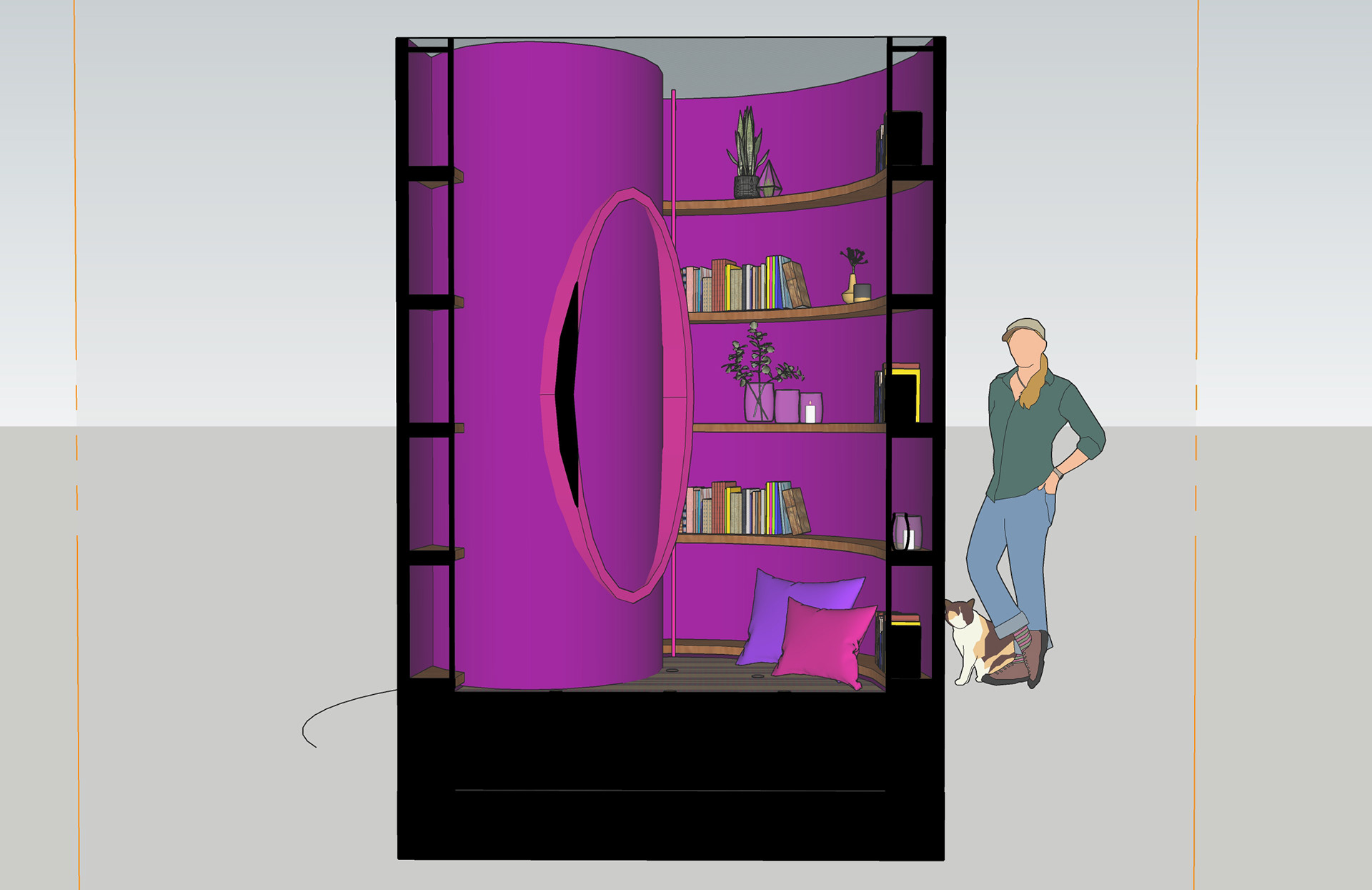

Section Cut

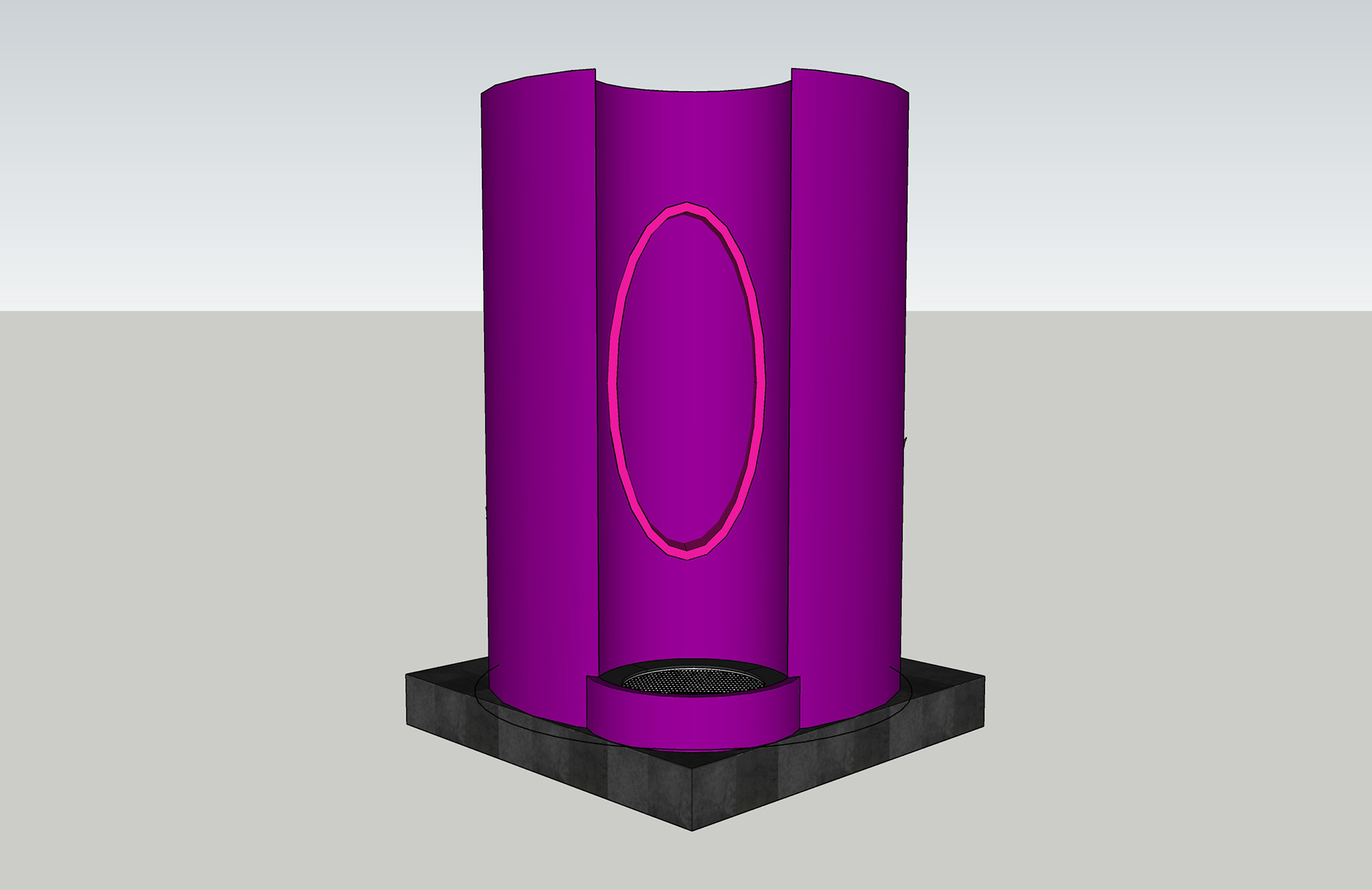

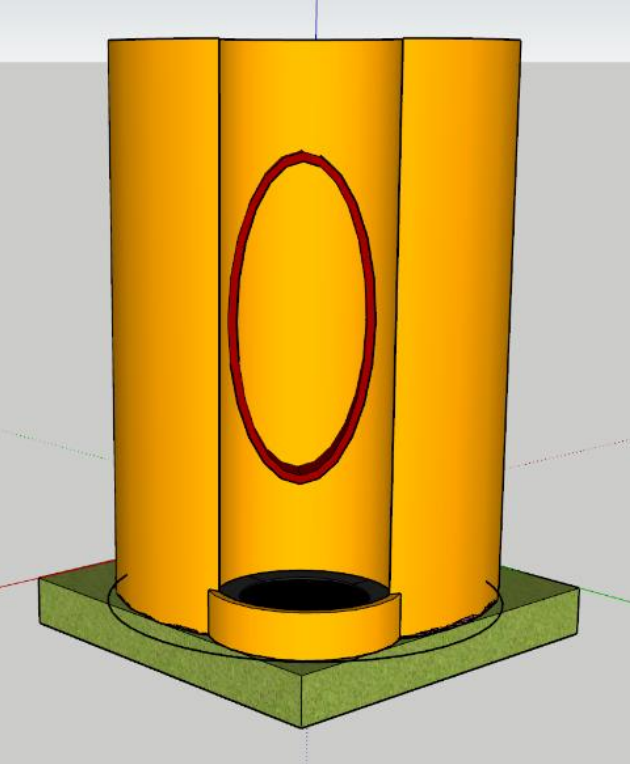

Front View
InDesign Presentation

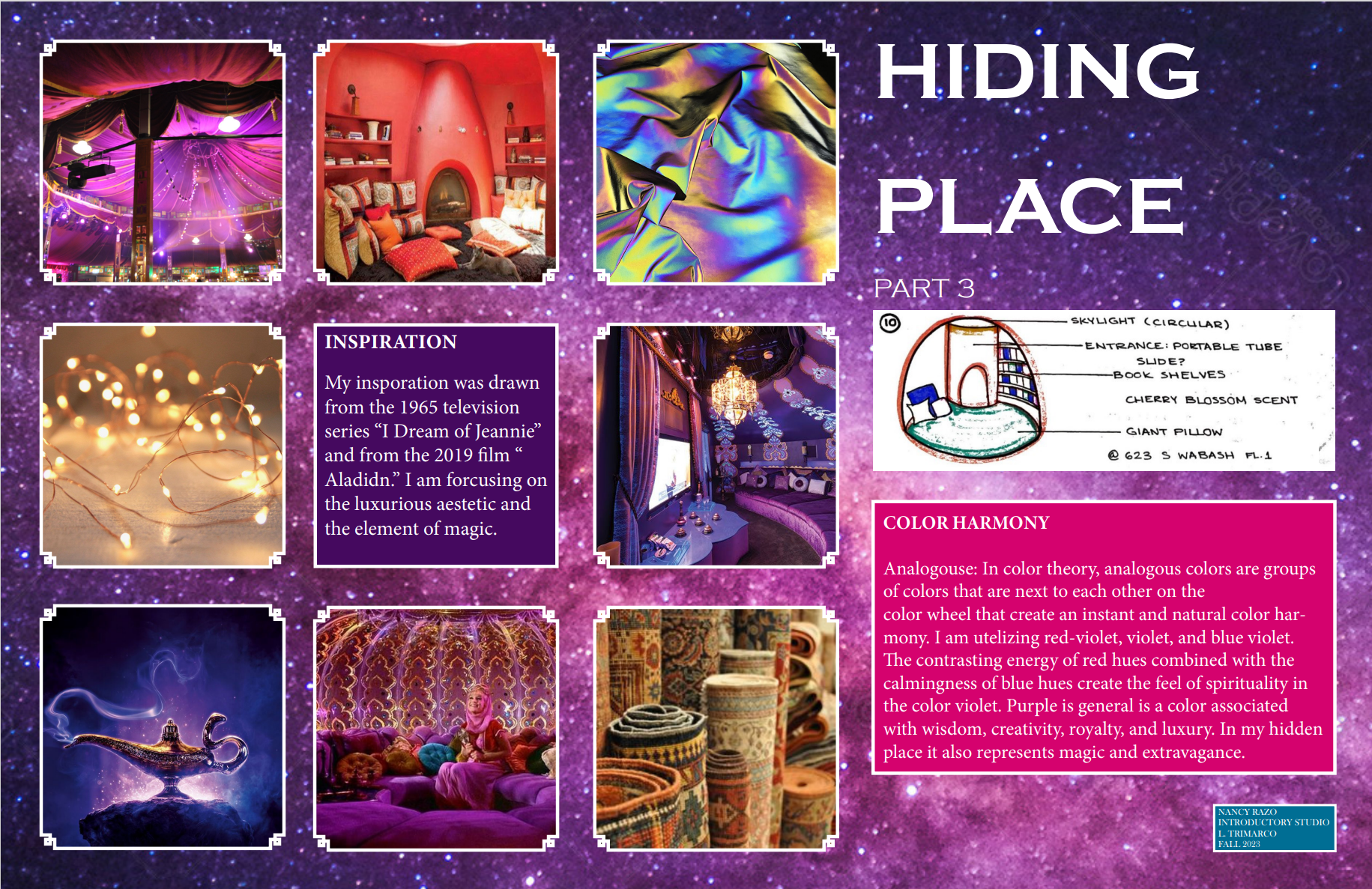

Page 1
Page 2

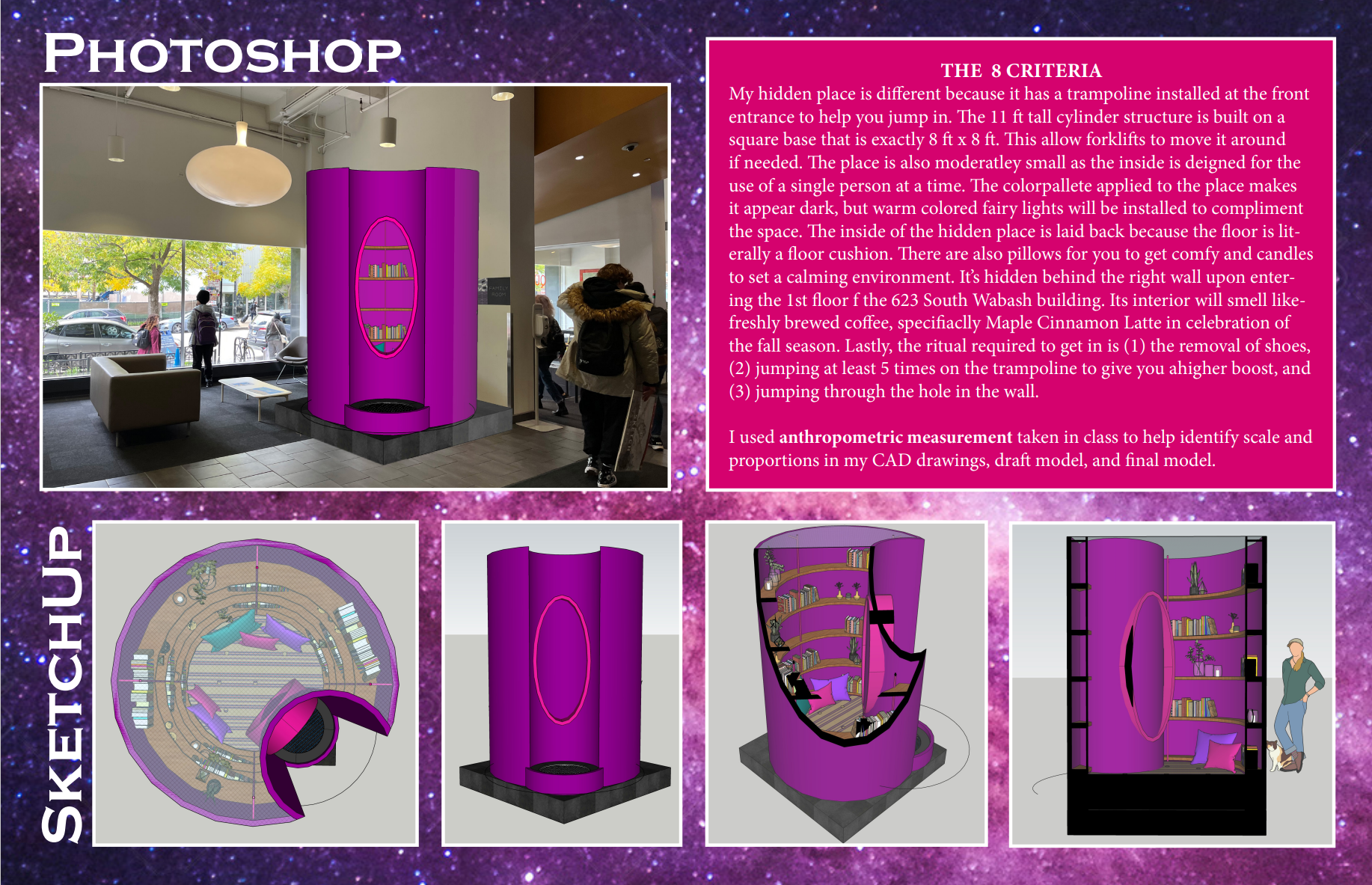

Page 3
Top View
Front View
Section Cut

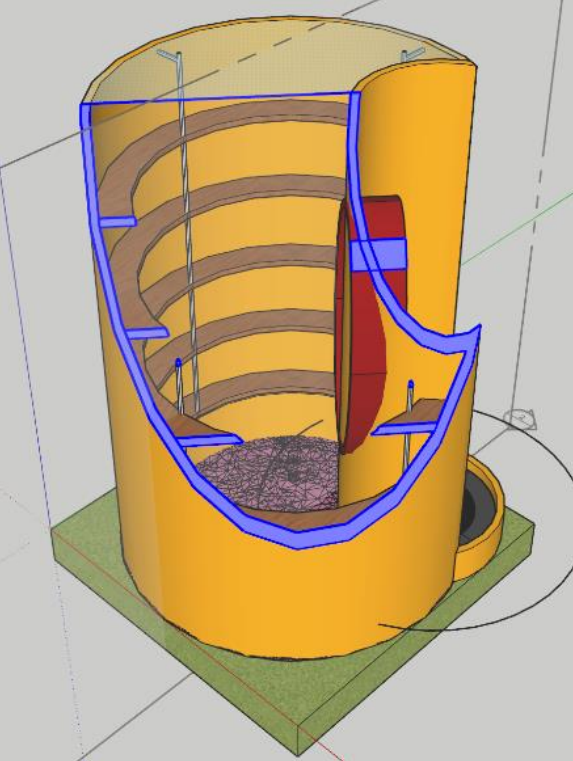

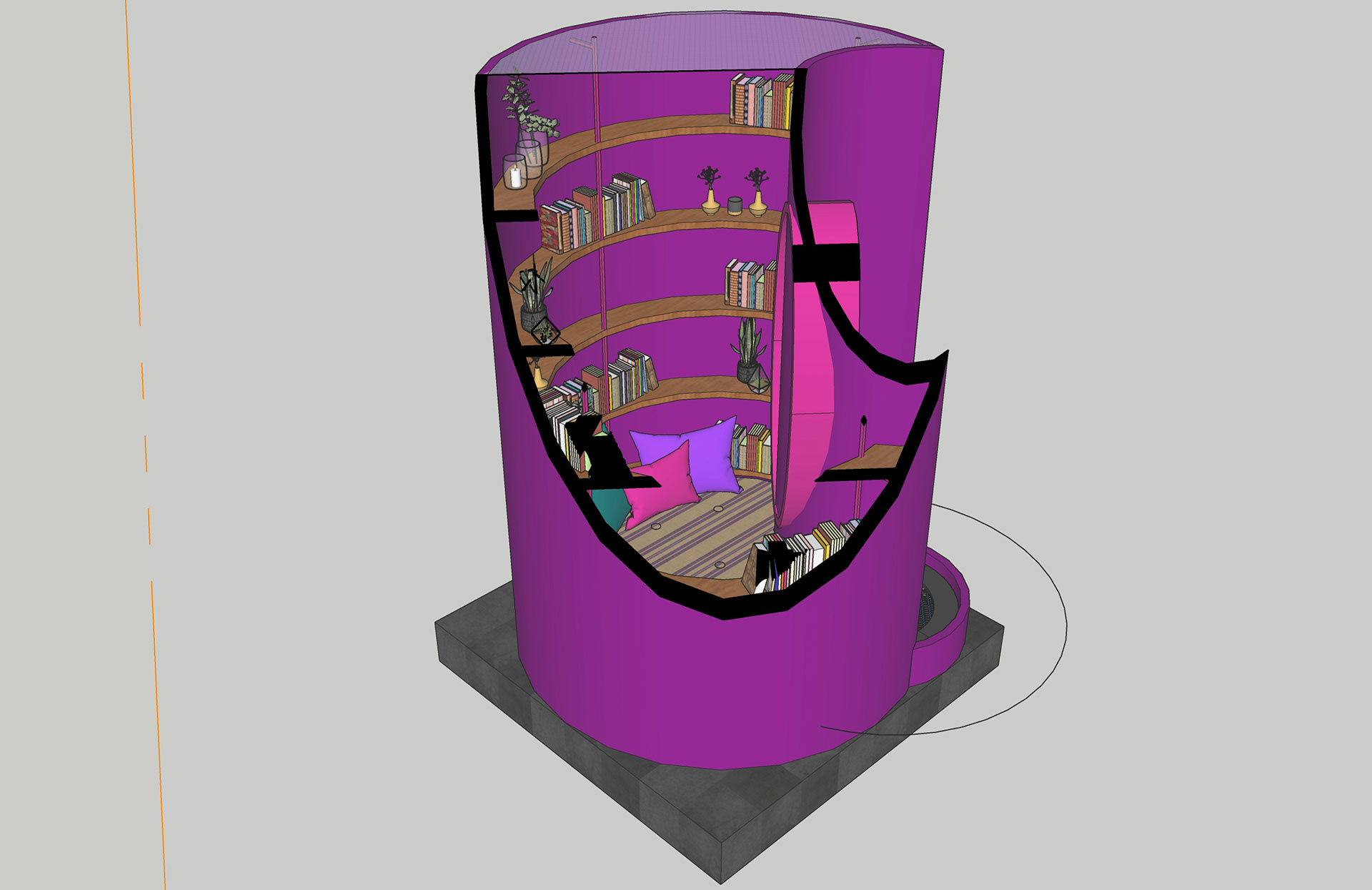

Sliced Perspective
Final 3D Model at 1/2" = 1'-0" scale
